SHANDONG CHENZHONG KN-SERIES MUD PUMPS

MODEL KN 12P-160 TRIPLEXT MUD PUMP

(100% interchangeable with NOV 12P-160)

MODEL KN 14P-220 TRIPLEXT MUD PUMP

(100% interchangeable with NOV 14P-220)

MODEL KN F-SERIES TRIPLEXT MUD PUMP

(100% interchangeable with Emsco F-SERIES)

F-500 / F-800 / F-1000 / F-1300 / F-1600 / F-2200

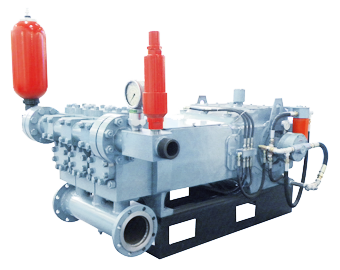

MODEL KEM-165 TRIPLEXT MUD PUMP

MODEL KNM-400 TRIPLEXT MUD PUMP

KN 12P-160 Performance Date

KN 14P-220 Performance Date

KN F-SERIES Performance Date

KEM-160 Performance Date

KNM-400 Performance Date

MODEL KN 12P-160 / KN 14P-220 TRIPLEXT MUD PUMP(100% interchangeable with NOV 12P-160/NOV 14P-220)

Model KN 12P-160 mud pump is compact, light-weighted, space-saving, highly-efficient and able to

accommodate different drill rigs and conditions. Durable and compact structure design ensures its smooth

running and can meet special requirements when drilling shallow well and well of middle to deep depth.

Model KN 12P-160 mud pump high durable fluid end greatly improves the performance of triplex mud pump

and its unique design enables quick check and convenient repair.

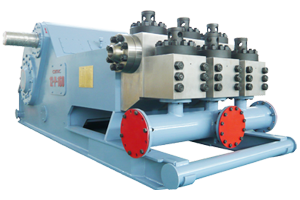

MODEL KN 12P-160 TRIPLEXT MUD PUMP

Rated Max.Brake HP .............................1,600BHP(1,193Kw)

Cylinder Hydraulic Test Pressure .....10,000 PSI(703kg/cm2)

Stroke Length ....................................................12"(304.8mm)

Gear Ratio ....................................................................3.439:1

Length ...............................................................209"(5309mm)

Width ...........................................................75.625"(1997mm)

Height .................................................................75"(1905mm)

Weight Dry(Approx.) ............................5,4700 Lbs.(24810kg)

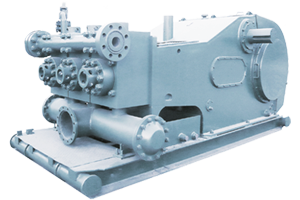

MODEL KN F-SERIES TRIPLEXT MUD PUMP(100% interchangeable with Emsco F-SERIES)

MODEL KEM-160 TRIPLEXT MUD PUMP

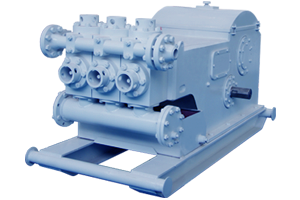

MODEL KNM-400 TRIPLEXT MUD PUMP
